What is the High Frequency Mobile Digital C-Arm System XRY-116C?

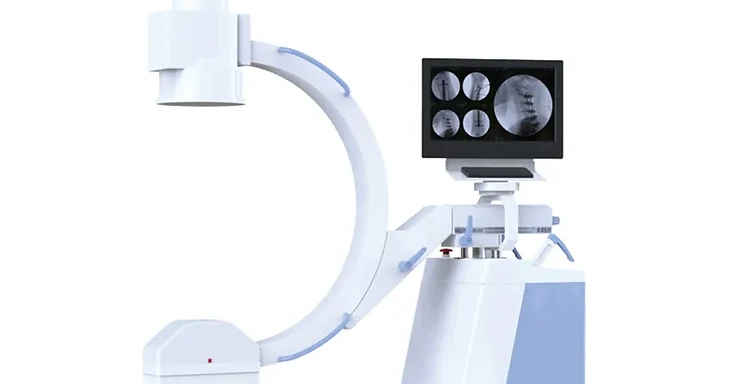

The Wincom High Frequency Mobile Digital C-Arm System XRY-116C pairs a 3.55 kW high-frequency C-arm gantry with a combined imaging workstation for intraoperative fluoroscopy and radiography. The 9-inch image intensifier resolves 4.8 lp/mm at centre; tube voltage spans 40–110 kV, continuous fluoroscopy runs at 0.3–4 mA, pulse fluoroscopy at 0.3–8 mA, and radiography at 25–63 mA with 1.0–125 mAs. A dual-focus 0.6/1.8 tube with 650 kJ (867 kHU) heat capacity supports extended procedures, the multi-jointed arm with locking handles positions the C around the surgical field, and the swivel-mounted LCD displays live and reference images in a multi-quad layout on 220 V single-phase supply. KRIMS Meditech Solutions Limited supplies this equipment with installation, radiation-protection commissioning, application training and after-sales support by factory-trained engineers.
What is it used for?
Intraoperative fluoroscopy and spot radiography — orthopaedic trauma and fixation, spine surgery with implant checks, vascular studies, pain management and intraoperative imaging in operating theatres.
Clinical and operational benefits
Pulse fluoroscopy with a high-resolution 9-inch intensifier lowers dose while confirming hardware position in real time during surgery.
Key features
- 3.55 kW power output
- ≥40 kHz inverter frequency
- 40–110 kV tube voltage
- continuous fluoroscopy 0.3–4 mA
- pulse fluoroscopy 0.3–8 mA
- radiography 25–63 mA, 1.0–125 mAs
- dual focus 0.6/1.8
- 650 kJ (867 kHU) tube heat capacity
- 9-inch image intensifier with 4.8 lp/mm centre resolution
- combined workstation with swivel LCD monitor
- 220 V single-phase supply.
Technical considerations
Art.No.: XRY-116C | Power output: 3.55 kW | Inverter frequency: ≥40 kHz | Tube voltage: 40–110 kV | Continuous fluoroscopy tube current (manual/direct): 0.3–4 mA | Pulse fluoroscopy tube current: 0.3–8 mA | Radiography tube current: 25–63 mA | Radiography mAs: 1.0–125 mAs | Focus: 0.6/1.8 | Tube heat capacity: 650 kJ (867 KHU) | Image intensifier: 9 inch, centre resolution 4.8 lp/mm | Power supply: 220 V ±22 V, single phase, 50 Hz ±1 Hz — per Wincom Company Ltd. official product specification
Power requirements: 220V ±22V, single phase, 50Hz ±1Hz
Specifications should be confirmed against official Wincom documentation before purchase decisions. Where a specification is not listed here, KRIMS will confirm it with the manufacturer on request.
Who may need it?
- Clinical departments: Orthopaedics & Trauma, Radiology & Nuclear Medicine
- Facility types: Hospitals
How to evaluate this equipment
When reviewing X-Ray Systems, healthcare facilities should assess clinical fit with existing workflows, compliance with applicable standards, integration with installed systems, serviceability, and the availability of qualified biomedical engineering support in their region.
Purchasing considerations
- Availability: On Request
KRIMS provides end-to-end support including supply, installation, commissioning, calibration, preventive maintenance and operator training. Request a quote for current pricing and delivery schedules for the High Frequency Mobile Digital C-Arm System XRY-116C (XRY-116C).
