What is the Patient Monitor M-9000GTE?

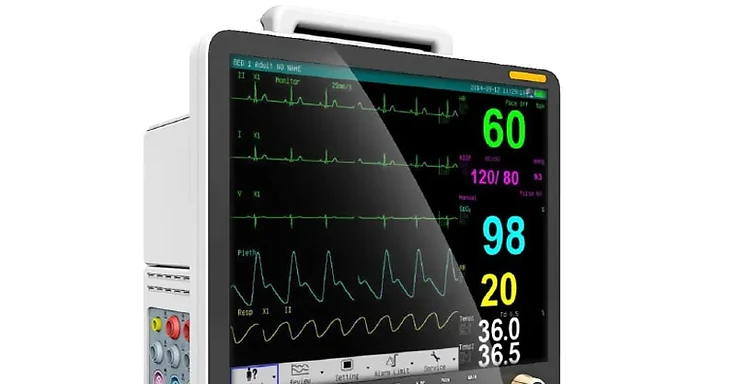

The Wincom Patient Monitor M-9000GTE is a high-acuity multiparameter monitor built on an ARM9 main board with an integrated 7-in-1 monitor module running embedded Linux for small size, high integration, low power and high performance. Parameters include ECG, respiration, NIBP, dual temperature, SpO2, pulse rate, dual IBP, CO2 and Multi-Gas, presented on a 15-inch high-resolution LCD with large-font numerics (touchscreen optional). ECG monitoring includes arrhythmia analysis, ST calculation and pace analysis, with protection against defibrillation, electrosurgical and myoelectric artifacts; NIBP carries dual over-pressure protection. A unique human-voice alarm identifies alarm sources, complementing three-level alarms with sound, light and on-screen messages. The monitor stores up to 720 hours of trend review, 1,000 NIBP reviews, 2 hours of full-waveform review and 200 alarm events, with USB disk export plus PRS review software, and embedded networking or an optional USB WiFi module for central monitoring. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, clinical training and after-sales support by factory-trained biomedical engineers.
What is it used for?
Continuous multi-parameter monitoring — including invasive pressures and gas analysis — in ICUs, operating theatres, emergency departments and high-dependency units, wired or wirelessly to a central monitoring station.
Clinical and operational benefits
Full digital SpO2 performance under low perfusion and motion, advanced ECG analysis, human-voice alarms and 720-hour trend review support confident decisions in high-acuity care.
Key features
- ARM9 main board with 7-in-1 monitor module on embedded Linux
- parameters: ECG, respiration, NIBP, dual temperature, SpO2, pulse rate, dual IBP, CO2 and Multi-Gas
- 15-inch high-resolution LCD with big-font display
- optional touchscreen
- human-voice alarm
- three-level alarms with sound, light and on-screen messages
- ECG arrhythmia analysis, ST calculation and pace analysis
- defibrillation/ESU/myoelectric artifact protection
- NIBP dual over-pressure protection
- full digital SpO2 with low-perfusion and motion performance
- 720-hour trend, 1,000 NIBP, 2-hour full-wave and 200 alarm-event reviews
- USB disk export with PRS software
- embedded network plus USB WiFi for central monitoring.
Technical considerations
Main board: ARM9 with 7-in-1 monitor module | OS: embedded Linux | Parameters: ECG, Respiration, NIBP, dual TEMP, SpO2, PR, dual IBP, CO2, Multi-Gas | Display: 15" high-resolution LCD, big-font screen; optional touch screen | Alarms: 3 levels with sound, light and on-screen messages; unique human-voice alarm | Reviews: 720 h trend, 1,000 NIBP, 2 h full wave, 200 alarm events | Data: USB disk output with PRS software; embedded network to central monitor server; USB WiFi module for wireless central monitoring | Protections: defibrillation, ESU, myoelectric artifact; NIBP dual over-pressure protection — per official Wincom Company Ltd. specification sheet
Specifications should be confirmed against official Wincom documentation before purchase decisions. Where a specification is not listed here, KRIMS will confirm it with the manufacturer on request.
Who may need it?
- Clinical departments: Emergency & Critical Care, Anaesthesia & Pain Management
- Facility types: Hospitals
How to evaluate this equipment
When reviewing Patient Monitoring Systems, healthcare facilities should assess clinical fit with existing workflows, compliance with applicable standards, integration with installed systems, serviceability, and the availability of qualified biomedical engineering support in their region.
Purchasing considerations
- Availability: On Request
KRIMS provides end-to-end support including supply, installation, commissioning, calibration, preventive maintenance and operator training. Request a quote for current pricing and delivery schedules for the Patient Monitor M-9000GTE (M-9000GTE).
