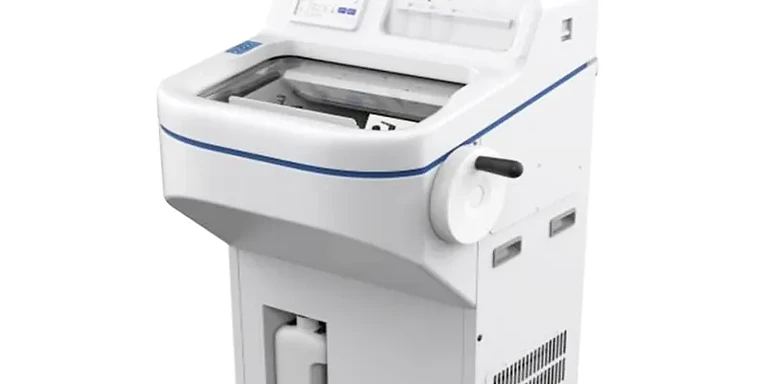

Semi-automatic Cryostat MCT-4000
Manufacturer: Wincom · Origin: China
SKU: KES-HISTO-WINCOM-MCT4000 · Model: MCT-4000
Semi-automatic cryostat microtome with −35°C chamber, 18 specimen freezing points and motorised specimen advance for frozen-section histopathology.
Product Overview
The Wincom MCT-4000 is a semi-automatic cryostat for preparing frozen tissue sections in histopathology and intraoperative consultation. It offers a refrigerated chamber with 18 specimen freezing points, switchable semiconductor freezing points, and motorised slow/fast specimen advance. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning and after-sales support.
Applications
Frozen-section preparation in histopathology laboratories; rapid intraoperative diagnosis; enzyme and lipid histochemistry requiring unfixed tissue.
Clinical Benefits
Rapid frozen sections enable same-session intraoperative consultation without overnight tissue processing.
Key Features
Refrigerated chamber with adjustable temperature; 18 specimen holder freezing points plus 2 switchable semiconductor freezing points; motorised specimen advance with slow and fast speeds; adjustable specimen clamp orientation.
Technical Specifications
Chamber temperature: −35°C to 40°C adjustable (minimum temperature −40°C) | Specimen freezing points: 18 | Semiconductor freezing points: 2 (switchable) | Refrigerating capacity: 690 W | Refrigerant: R449A / 400 g ± 5 g | Vertical specimen stroke: 59 mm ± 0.5 mm | Horizontal stroke: 25 mm ± 1 mm | Max specimen size: 55 × 55 mm | Specimen clamp angle: 12° X & Y axes, 360° Z axis | Slow advance/rewind: 300 μm/s | Fast advance/rewind: 900 μm/s
