Medical X-Ray Machine 100mA XRY-100B
Manufacturer: Wincom · Origin: China
SKU: KES-XRAY-WINCOM-XRY100B · Model: XRY-100B
Wincom 100mA medical radiography X-ray system (50–90 kV) with radiographic table, vertical tube column, collimator and analogue operator console.
Product Overview

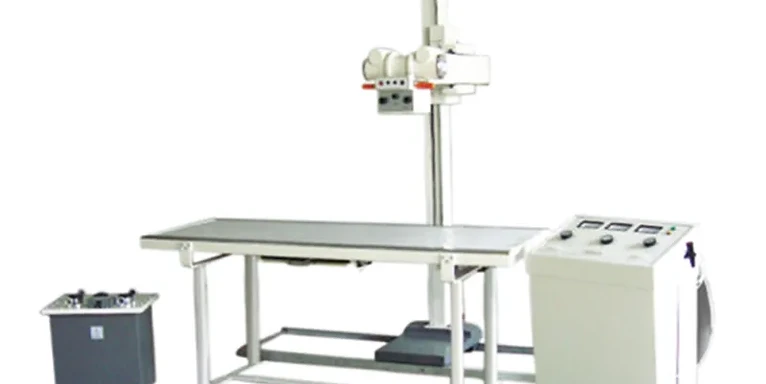

The Wincom Medical X-Ray Machine 100mA (Art. No. XRY-100B) is a diagnostic radiography system comprising a radiographic patient table, a vertical tube-support column with X-ray tube head and collimator, an analogue operator console with exposure dials, and a high-voltage transformer unit. Operating parameters per the Wincom listing: tube voltage 50–90 kV; tube current with small focus at 16 mA and large focus at 32/63/100 mA; exposure time adjustable 0.04–6.3 s in 22 grades. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, radiation-protection guidance and after-sales support by factory-trained biomedical engineers.
Applications
General diagnostic radiography — chest, extremity and table-top examinations — in clinics, primary hospitals and diagnostic centres.
Clinical Benefits
Adjustable kV/mA and 22-grade exposure control support dose-appropriate imaging across routine diagnostic examinations.
Key Features
Radiographic patient table; vertical tube-support column with X-ray tube head and collimator; analogue operator console with exposure dials; high-voltage transformer unit; tube voltage 50–90 kV; dual focus (16 mA small focus; 32/63/100 mA large focus); exposure time 0.04–6.3 s in 22 grades.
Technical Specifications
Tube voltage: 50–90 kV | Tube current: small focus 16 mA; large focus 32 / 63 / 100 mA (max 100 mA) | Exposure time: 0.04–6.3 s, 22 grades | System: radiographic table, vertical tube column, operator console, high-voltage transformer (per Wincom listing)
Installation Requirements
Requires a suitably shielded radiography room with mains power; installation and radiation-safety commissioning by qualified biomedical engineers.
