High Frequency Mobile X-Ray Unit XRY-HF50M
Manufacturer: Wincom · Origin: China
SKU: KES-XRAY-WINCOM-XRYHF50M · Model: XRY-HF50M
Wincom 2.5 kW high-frequency mobile X-ray unit: 40–100 kV in 1 kV steps with graded tube current down to 25 mA and 1.0–160 mAs in 45 steps.
Product Overview

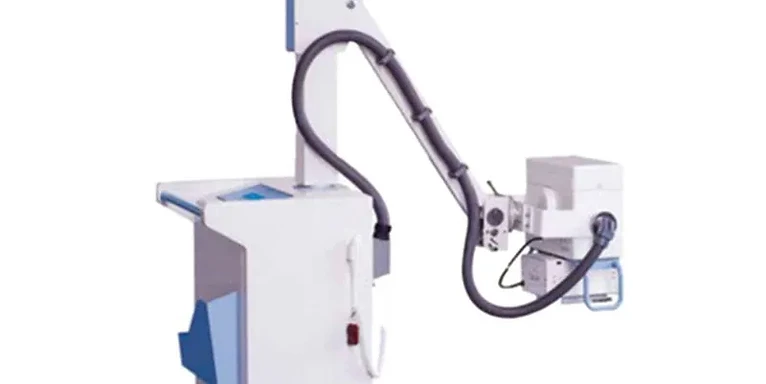

The Wincom High Frequency Mobile X-ray Unit XRY-HF50M is a wheeled mobile radiography unit for bedside and ward imaging. A 2.5 kW high-frequency generator inverting at 50 kHz feeds a compact tube head on a swivelling, articulating arm; tube voltage covers 40–100 kV in 1 kV intervals with tube current graded by kV band — 50 mA at 40–49 kV stepping down to 25 mA at 90–100 kV — and mAs selectable from 1.0 to 160 in 45 steps. The wheeled base with braked casters and foot brake allows one-person positioning between bedsides, and the corrugated cable sheathing protects the tube-head feed during movement. KRIMS Meditech Solutions Limited supplies this equipment with installation, radiation-protection commissioning, application training and after-sales support by factory-trained engineers.
Applications
Mobile radiography — chest, abdominal and extremity studies at bedside, in wards, ICUs, emergency departments and clinic settings.
Clinical Benefits
High-frequency output with finely stepped kV/mAs delivers consistent image quality at the bedside without transporting critical patients.
Key Features
2.5 kW power input; 50 kHz main inverter frequency; 40–100 kV tube voltage in 1 kV intervals; graded tube current by kV band (50 mA at 40–49 kV to 25 mA at 90–100 kV); 1.0–160 mAs in 45 steps; wheeled base with foot brake; articulating tube-head arm.
Technical Specifications
Art. No.: XRY-HF50M | Power input: 2.5 kW | Main invert frequency: 50 kHz | X-ray tube: 1.5 | Tube voltage: 40–100 kV (interval 1 kV) | Tube current: 40–49 kV 50 mA 1–160 mAs; 50–59 kV 42 mA 1–160 mAs; 60–69 kV 35 mA 1–140 mAs; 70–79 kV 31 mA 1–125 mAs; 80–89 kV 28 mA 1–100 mAs; 90–100 kV 25 mA 1–80 mAs | mAs: 1.0–160 mAs (45 steps) — per Wincom Company Ltd. official product specification
Installation Requirements
Mobile deployment with mains access; radiation-safety commissioning and operator training on delivery.
