1 / 2EMG System 6600B
Manufacturer: Wincom · Origin: China
SKU: KES-EMG-WINCOM-6600B · Model: 6600B
Wincom four-channel electromyography system with 16-bit A/D conversion, 0.05 µV–20 mV sensitivity and ≥100 dB CMRR, with single or continuous stimulation.
Product Overview
The Wincom EMG System 6600B is a four-channel electromyography and evoked-potential platform for clinical neurophysiology. The acquisition unit provides 16-bit A/D conversion with sensitivity from 0.05 µV to 20 mV per grid and a common-mode rejection ratio of at least 100 dB, running on a PC workstation (Intel Pentium III class processor above 800 MHz, more than 256 MB memory, more than 40 GB hard disk) with single or continuous stimulation modes. The control console carries dedicated function keys, navigation pads and a trackball for study control. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.
Applications
Clinical electromyography, nerve conduction studies and evoked potentials in neurology, physiotherapy and rehabilitation departments.
Clinical Benefits
Four-channel acquisition with 0.05 µV sensitivity and high CMRR captures low-amplitude motor and sensory responses for confident neurophysiological diagnosis.
Key Features

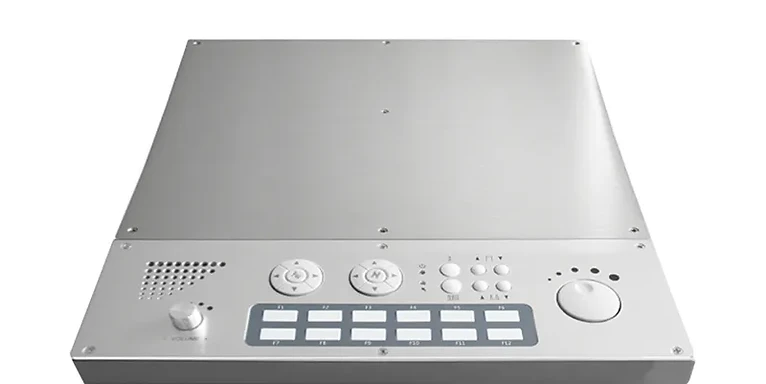

Four-channel acquisition; 16-bit A/D conversion; sensitivity 0.05 µV–20 mV/grid; CMRR ≥100 dB; single or continuous stimulation; PC workstation with >256 MB memory and >40 GB storage; dedicated control console with function keys and trackball.
Technical Specifications
Art.No.: 6600B | Channel: four-channel | CPU: Intel Pentium III (more than 800 MHz) | EMS memory: more than 256 M | HD: more than 40 G | A/D conversion resolution: 16 bit | Sensitivity: 0.05 µV–20 mV/grid | CMRR: ≥100 dB | Stimulation: single or continuous stimulation — per Wincom Company Ltd. official product specification
Accessories
Included
Acquisition unit, control console, PC workstation and software as supplied by manufacturer; electrodes per order configuration.
Optional
Electrode and stimulation accessories per clinical requirements.
Installation Requirements
Dedicated examination room with mains power and shielded environment recommended; PC workstation set-up and application training on delivery.
