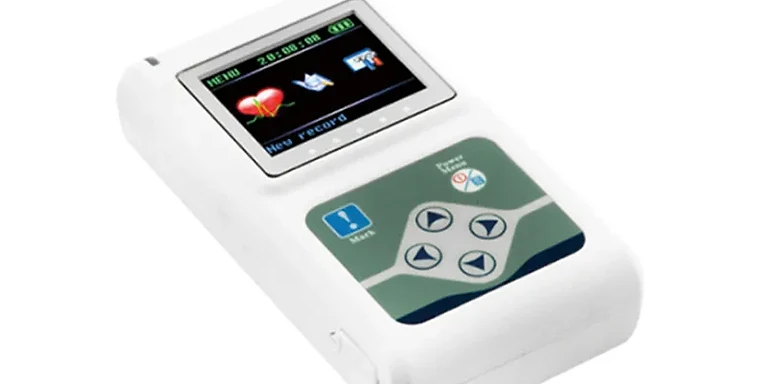

Dynamic ECG System ECG-D9803

Product Overview

The Wincom Dynamic ECG System ECG-D9803 is a 3-lead ambulatory Holter recorder that captures a full 24-hour ECG for offline analysis. The handheld recorder features a colour LCD with menu-driven operation and a dedicated event-mark button so patients can flag symptoms during the recording period. Calibration voltage is 1 mV ±5%, the low-frequency time constant is at least 3.2 s, scan speed is 25 mm/s ±5%, and polarising-voltage tolerance is ±300 mV with sensitivity variation ≤±10%. Power comes from two AA batteries, keeping the device light for continuous wear. KRIMS Meditech Solutions Limited supplies this system with delivery, user orientation and full after-sales support.

Applications

24-hour ambulatory ECG (Holter) monitoring for arrhythmia detection, syncope work-up and symptom-rhythm correlation in outpatient cardiology.

Clinical Benefits

Full-day rhythm capture with patient-triggered event marking links symptoms to ECG evidence for arrhythmia and ischaemia assessment.

Key Features

3-lead recording; 24-hour record time; colour LCD with menu; event-mark button; two AA batteries; calibration voltage 1 mV ±5%; time constant ≥3.2 s; scan speed 25 mm/s ±5%; polarising voltage ±300 mV (sensitivity ≤±10%).

Technical Specifications

Art.No.: ECG-D9803 | Lead: 3-lead | Record time: 24-hour | Power supply: two AA batteries | Calibration voltage: 1 mV ±5% | Low-frequency characteristics: time constant ≥3.2 s | Scan speed: 25 mm/s ±5% | Polarizing voltage: ±300 mV, sensitivity ≤±10% — per Wincom Company Ltd. official product specification

Accessories

Included

Patient cable and lead set, carrying pouch and batteries as supplied by manufacturer.

Optional

Disposable ECG electrodes and Holter analysis software configuration per clinical requirements.

Installation Requirements

No installation; patient-worn recorder operation with electrode placement guidance and user orientation on delivery.
