What is the Digital Mobile X-Ray Machine XRY-5100 (Flat Panel Detector + Workstation)?

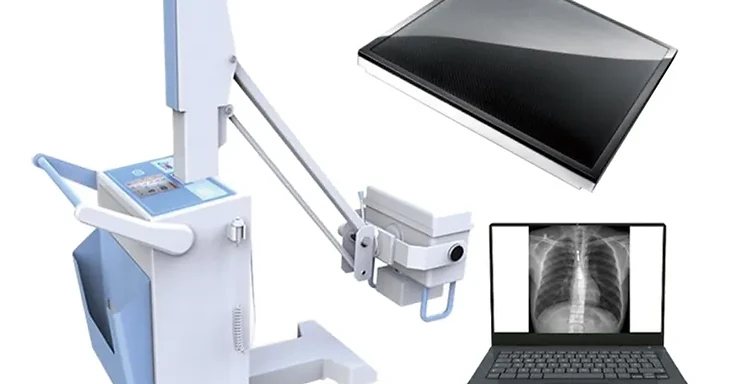

The Wincom Digital Mobile X-Ray Machine XRY-5100 is a complete mobile digital radiography package: the mobile X-ray trolley, a 14″×17″ flat panel detector (FPD) and a portable computer workstation with acquisition software. The 5 kW high-frequency generator (inverter ≥50 kHz) drives tube voltage from 40 kV to 120 kV in 1 kV steps with tube currents of 25–100 mA and radiography output from 1.0 to 180 mAs, dual focus 0.3/1.5 and 500 kJ tube heat capacity. The flat panel detector captures 16-bit images at 3.4 Lp/mm spatial resolution for immediate bedside chest, abdominal and extremity radiography, and the single-phase 220 V ±22 V, 50 Hz ±1 Hz supply suits standard ward power. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.
What is it used for?
Mobile digital radiography — bedside chest, abdominal and extremity imaging in wards, ICU and emergency settings.
Clinical and operational benefits
Immediate bedside DR with a 14″×17″ 16-bit panel removes film handling and transports critically ill patients less for imaging.
Key features
- Complete mobile DR package (trolley + FPD + workstation)
- 5 kW generator with ≥50 kHz inverter
- tube voltage 40–120 kV in 1 kV steps
- tube current 25–100 mA
- mAs 1.0–180
- dual focus 0.3/1.5
- tube heat capacity 500 kJ
- 14″×17″ flat panel detector
- 16-bit gray scale
- spatial resolution 3.4 Lp/mm
- single-phase 220 V ±22 V, 50 Hz ±1 Hz.
Technical considerations
Art.No.: XRY-5100 | Power output: 5 kW | Inverter frequency: ≥50 kHz | Tube voltage: 40–120 kV in 1 kV steps | Radiography tube current: 25–100 mA | Radiography mAs: 1.0–180 mAs | Focusing: 0.3/1.5 | Tube heat capacity: 500 kJ | FPD size: 14″×17″ | Gray level: 16 bit | Spatial resolution: 3.4 Lp/mm | Power supply distribution: 220 V ±22 V, single phase, 50 Hz ±1 Hz — per Wincom Company Ltd. official product specification
Power requirements: 220V ±22V, single phase, 50Hz ±1Hz
Specifications should be confirmed against official Wincom documentation before purchase decisions. Where a specification is not listed here, KRIMS will confirm it with the manufacturer on request.
Who may need it?
- Clinical departments: Radiology & Nuclear Medicine, Emergency & Critical Care
- Facility types: Hospitals, Diagnostic Centres
How to evaluate this equipment
When reviewing X-Ray Systems, healthcare facilities should assess clinical fit with existing workflows, compliance with applicable standards, integration with installed systems, serviceability, and the availability of qualified biomedical engineering support in their region.
Purchasing considerations
- Availability: On Request
KRIMS provides end-to-end support including supply, installation, commissioning, calibration, preventive maintenance and operator training. Request a quote for current pricing and delivery schedules for the Digital Mobile X-Ray Machine XRY-5100 (Flat Panel Detector + Workstation) (XRY-5100).
