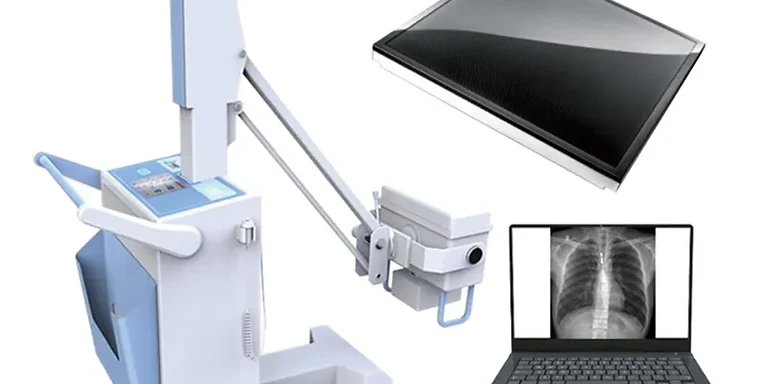

Digital Mobile X-Ray Machine XRY-5100 (Flat Panel Detector + Workstation)

Product Overview

The Wincom Digital Mobile X-Ray Machine XRY-5100 is a complete mobile digital radiography package: the mobile X-ray trolley, a 14″×17″ flat panel detector (FPD) and a portable computer workstation with acquisition software. The 5 kW high-frequency generator (inverter ≥50 kHz) drives tube voltage from 40 kV to 120 kV in 1 kV steps with tube currents of 25–100 mA and radiography output from 1.0 to 180 mAs, dual focus 0.3/1.5 and 500 kJ tube heat capacity. The flat panel detector captures 16-bit images at 3.4 Lp/mm spatial resolution for immediate bedside chest, abdominal and extremity radiography, and the single-phase 220 V ±22 V, 50 Hz ±1 Hz supply suits standard ward power. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.

Applications

Mobile digital radiography — bedside chest, abdominal and extremity imaging in wards, ICU and emergency settings.

Clinical Benefits

Immediate bedside DR with a 14″×17″ 16-bit panel removes film handling and transports critically ill patients less for imaging.

Key Features

Complete mobile DR package (trolley + FPD + workstation); 5 kW generator with ≥50 kHz inverter; tube voltage 40–120 kV in 1 kV steps; tube current 25–100 mA; mAs 1.0–180; dual focus 0.3/1.5; tube heat capacity 500 kJ; 14″×17″ flat panel detector; 16-bit gray scale; spatial resolution 3.4 Lp/mm; single-phase 220 V ±22 V, 50 Hz ±1 Hz.

Technical Specifications

Art.No.: XRY-5100 | Power output: 5 kW | Inverter frequency: ≥50 kHz | Tube voltage: 40–120 kV in 1 kV steps | Radiography tube current: 25–100 mA | Radiography mAs: 1.0–180 mAs | Focusing: 0.3/1.5 | Tube heat capacity: 500 kJ | FPD size: 14″×17″ | Gray level: 16 bit | Spatial resolution: 3.4 Lp/mm | Power supply distribution: 220 V ±22 V, single phase, 50 Hz ±1 Hz — per Wincom Company Ltd. official product specification

Accessories

Included

Mobile X-ray trolley, 14″×17″ flat panel detector and portable computer workstation with acquisition software.

Optional

Additional detectors, grid and positioning accessories per clinical requirements.

Installation Requirements

Ward-level mains supply (single-phase 220 V); trolley assembly, detector pairing, workstation set-up and radiation-safety commissioning on delivery.
