What is the Digital Portable Ultrasound Scanner USS-353B?

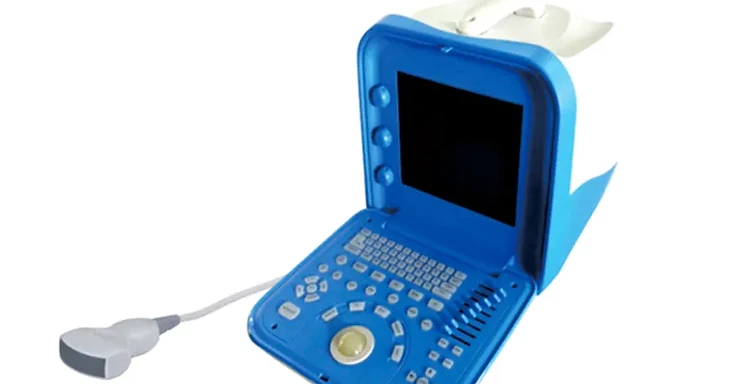

The Wincom Digital Portable Ultrasound Scanner USS-353B is a full digital portable ultrasound in a distinctive blue clamshell chassis with carrying handle. Image modes cover B, B+B, B+M, M and 4B with 256-level gray scale and a maximum display depth of 240 mm; zoom steps run ×0.8, ×1.0, ×1.2, ×1.5 and ×2.0 with up/down, left/right and black/white image conversion. Frequency points span 2.0, 3.5, 4.5, 5.0, 5.5, 6.5, 7.5, 8.5 and 10.0 MHz, and the system annotates date, name, sex, age, hospital and free comments. One convex probe is standard, with convex/linear/trans-vaginal scanning supported and trans-vaginal, trans-rectal, high-frequency linear and micro-convex probes optional. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.
What is it used for?
General diagnostic ultrasound — abdominal, obstetric, gynaecological and superficial studies — in hospitals, clinics and mobile diagnostic programmes.
Clinical and operational benefits
240 mm display depth with a 2.0–10.0 MHz frequency ladder covers deep abdominal to superficial examinations on one portable platform.
Key features
- Image modes B, B+B, B+M, M, 4B
- 256-level gray scale
- max display depth 240 mm
- zoom ×0.8/×1.0/×1.2/×1.5/×2.0
- image conversion up/down, left/right, black/white
- frequency points 2.0–10.0 MHz
- full patient annotation
- standard 1 convex probe
- blue clamshell chassis with carrying handle.
Technical considerations
Art. No.: USS-353B | Image mode: B, B+B, B+M, M, 4B | Scanning mode: convex, linear, trans-vaginal | Gray scale: 256 levels | Max display depth: 240 mm | Zooming: ×0.8, ×1.0, ×1.2, ×1.5, ×2.0 | Frequency points: 2.0, 3.5, 4.5, 5.0, 5.5, 6.5, 7.5, 8.5, 10.0 MHz | Image conversion: up/down, left/right, black/white | Comment: date, name, sex, age, hospital, annotation | Standard probe: 1 convex probe | Probes optional: trans-vaginal, trans-rectal, high frequency linear, micro-convex — per Wincom Company Ltd. official catalogue
Specifications should be confirmed against official Wincom documentation before purchase decisions. Where a specification is not listed here, KRIMS will confirm it with the manufacturer on request.
Who may need it?
- Clinical departments: Radiology & Nuclear Medicine
- Facility types: Hospitals, Clinics, Diagnostic Centres
How to evaluate this equipment
When reviewing Ultrasound Systems, healthcare facilities should assess clinical fit with existing workflows, compliance with applicable standards, integration with installed systems, serviceability, and the availability of qualified biomedical engineering support in their region.
Purchasing considerations
- Availability: On Request
KRIMS provides end-to-end support including supply, installation, commissioning, calibration, preventive maintenance and operator training. Request a quote for current pricing and delivery schedules for the Digital Portable Ultrasound Scanner USS-353B (USS-353B).
