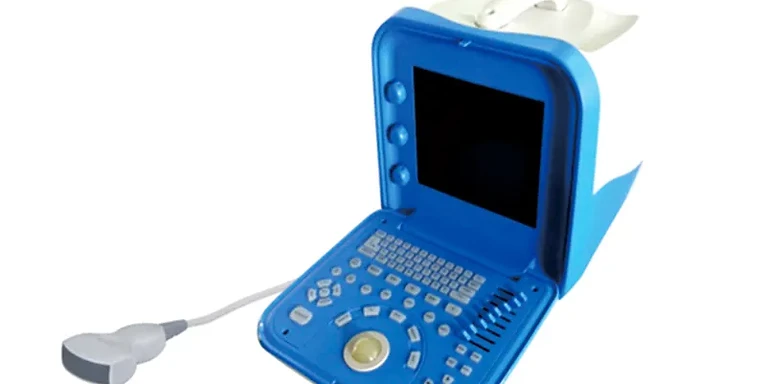

Digital Portable Ultrasound Scanner USS-353B
Manufacturer: Wincom · Origin: China
SKU: KES-ULTRASOUND-WINCOM-USS353B · Model: USS-353B
Wincom digital portable ultrasound with 240 mm display depth, 2.0–10.0 MHz frequency points and ×0.8–×2.0 zoom in a blue clamshell chassis.
Product Overview
The Wincom Digital Portable Ultrasound Scanner USS-353B is a full digital portable ultrasound in a distinctive blue clamshell chassis with carrying handle. Image modes cover B, B+B, B+M, M and 4B with 256-level gray scale and a maximum display depth of 240 mm; zoom steps run ×0.8, ×1.0, ×1.2, ×1.5 and ×2.0 with up/down, left/right and black/white image conversion. Frequency points span 2.0, 3.5, 4.5, 5.0, 5.5, 6.5, 7.5, 8.5 and 10.0 MHz, and the system annotates date, name, sex, age, hospital and free comments. One convex probe is standard, with convex/linear/trans-vaginal scanning supported and trans-vaginal, trans-rectal, high-frequency linear and micro-convex probes optional. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.
Applications
General diagnostic ultrasound — abdominal, obstetric, gynaecological and superficial studies — in hospitals, clinics and mobile diagnostic programmes.
Clinical Benefits
240 mm display depth with a 2.0–10.0 MHz frequency ladder covers deep abdominal to superficial examinations on one portable platform.
Key Features
Image modes B, B+B, B+M, M, 4B; 256-level gray scale; max display depth 240 mm; zoom ×0.8/×1.0/×1.2/×1.5/×2.0; image conversion up/down, left/right, black/white; frequency points 2.0–10.0 MHz; full patient annotation; standard 1 convex probe; blue clamshell chassis with carrying handle.
Technical Specifications
Art. No.: USS-353B | Image mode: B, B+B, B+M, M, 4B | Scanning mode: convex, linear, trans-vaginal | Gray scale: 256 levels | Max display depth: 240 mm | Zooming: ×0.8, ×1.0, ×1.2, ×1.5, ×2.0 | Frequency points: 2.0, 3.5, 4.5, 5.0, 5.5, 6.5, 7.5, 8.5, 10.0 MHz | Image conversion: up/down, left/right, black/white | Comment: date, name, sex, age, hospital, annotation | Standard probe: 1 convex probe | Probes optional: trans-vaginal, trans-rectal, high frequency linear, micro-convex — per Wincom Company Ltd. official catalogue
Accessories
Included
One convex probe, power adapter and documentation as supplied by manufacturer.
Optional
Trans-vaginal, trans-rectal, high-frequency linear and micro-convex probes.
Installation Requirements
Bench or trolley placement with mains power; probe set-up and application training on delivery.
