What is the Electroencephalogram Machine (EEG) EEG-88?

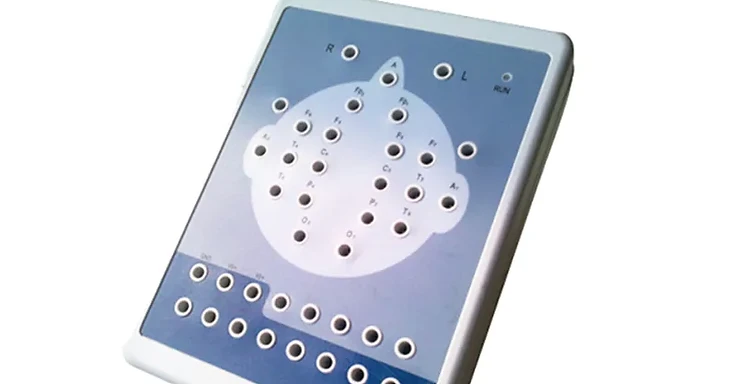

The Wincom Electroencephalogram Machine EEG-88 records 16 channels of EEG plus 2 channels of ECG at a 100 dots/s sampling rate with 12-bit accuracy. Input impedance is at least 10 MΩ, patient leakage current is held below 10 µA, and the amplifier provides a magnification multiple of 10,000 with selectable display (paper) speeds of 5, 10, 15, 30, 60 and 120 mm/s and amplitude settings from 1 to 50 mm/50 µV. The headbox panel maps standard 10-20 electrode positions (Fp1, Fp2, F3, F4, C3, C4, P3, P4, O1, O2, F7, F8, T3, T4, T5, T6 and more) with left/right markers and a RUN status indicator. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.
What is it used for?
Routine and diagnostic electroencephalography — epilepsy evaluation, encephalopathy, altered-consciousness work-up and neurodiagnostic screening.
Clinical and operational benefits
Sixteen EEG channels with simultaneous 2-channel ECG and low patient leakage current support safe, diagnostically useful neurophysiology recording.
Key features
- 16 channels EEG + 2 channels ECG
- 100 dots/s sampling
- 12-bit accuracy
- input impedance ≥10 MΩ
- patient leak current <10 µA
- magnification ×10,000
- display speeds 5/10/15/30/60/120 mm/s
- amplitude 1–50 mm/50 µV
- 10-20 electrode mapping headbox with RUN indicator.
Technical considerations
Art.No.: EEG-88 | Specification: 16 channels of EEG + 2 channels of ECG | Sampling rate: 100 dots/s | Accuracy: 12 bit | Input impedance: ≥10 MΩ | Patient leak current: <10 µA | Magnification multiple: 10,000 | Display speed (paper speed): 5, 10, 15, 30, 60, 120 mm/s | Amplitude: 1, 1.5, 2, 3, 5, 7.5, 10, 12, 15, 20, 30, 50 mm/50 µV — per Wincom Company Ltd. official product specification
Specifications should be confirmed against official Wincom documentation before purchase decisions. Where a specification is not listed here, KRIMS will confirm it with the manufacturer on request.
Who may need it?
- Clinical departments: Neurology & Neurosurgery, Psychiatry & Mental Health
- Facility types: Hospitals, Clinics
How to evaluate this equipment
When reviewing Neurology & Neurosurgery, healthcare facilities should assess clinical fit with existing workflows, compliance with applicable standards, integration with installed systems, serviceability, and the availability of qualified biomedical engineering support in their region.
Purchasing considerations
- Availability: On Request
KRIMS provides end-to-end support including supply, installation, commissioning, calibration, preventive maintenance and operator training. Request a quote for current pricing and delivery schedules for the Electroencephalogram Machine (EEG) EEG-88 (EEG-88).
