What is the Full Digital LED Ultrasound Scanner USS-300?

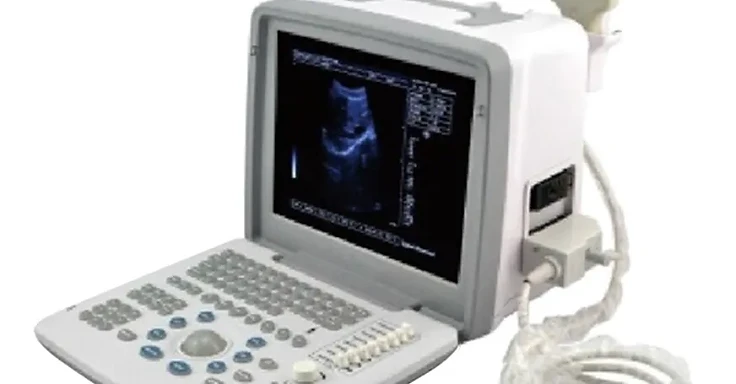

The Wincom Full Digital LED Ultrasound Scanner USS-300 is a full digital portable ultrasound for general diagnostic imaging. Display modes cover B, B/B, 4B, B+M and M on a 12.1-inch real-time display showing 256 consecutive images with 256-level gray scale and 0–120 dB adjustable dynamic range. The external LED display offers 16 kinds of pseudo color, 128 images store permanently on board, 8-segment TGC and overall gain adjust independently, and E-zoom magnifies the real-time image up to 2×. Frequency points span 2.5–7.5 MHz, with one convex probe as standard and trans-vaginal, trans-rectal, high-frequency linear and micro-convex probes optional. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.
What is it used for?
General diagnostic ultrasound — abdominal, obstetric and basic clinical studies — in hospitals, clinics and diagnostic programmes.
Clinical and operational benefits
Full digital imaging with broad frequency selection and pseudo-color enhancement supports confident routine diagnostics at low cost of ownership.
Key features
- Display modes B, B/B, 4B, B+M, M
- 12.1-inch real-time display, 256 consecutive images
- 256-level gray scale
- 0–120 dB adjustable dynamic range
- external LED display with 16 pseudo colors
- 128-image permanent storage
- 8-segment TGC plus overall gain
- 2× E-zoom
- frequency points 2.5/3.0/3.5/4.0/5.0/5.5/6.0/6.5/7.0/7.5 MHz
- standard 1 convex probe.
Technical considerations
Art.No.: USS-300 | Display modes: B, B/B, 4B, B+M, M | Display: 12.1-inch real time, 256 consecutive images | Gray scale: 256 levels | Dynamic range: 0–120 dB adjustable | LED display: external, 16 kinds of pseudo color | Permanent storage: 128 images | Gain control: 8 segments TGC and overall gain adjustable respectively | E-zoom: magnify 2 times of real time image | Frequency points: 2.5/3.0/3.5/4.0/5.0/5.5/6.0/6.5/7.0/7.5 MHz | Standard probe: 1 convex probe | Probes optional: trans-vaginal, trans-rectal, high frequency linear, micro-convex — per Wincom Company Ltd. official catalogue
Specifications should be confirmed against official Wincom documentation before purchase decisions. Where a specification is not listed here, KRIMS will confirm it with the manufacturer on request.
Who may need it?
- Clinical departments: Radiology & Nuclear Medicine
- Facility types: Hospitals, Clinics, Diagnostic Centres
How to evaluate this equipment
When reviewing Ultrasound Systems, healthcare facilities should assess clinical fit with existing workflows, compliance with applicable standards, integration with installed systems, serviceability, and the availability of qualified biomedical engineering support in their region.
Purchasing considerations
- Availability: On Request
KRIMS provides end-to-end support including supply, installation, commissioning, calibration, preventive maintenance and operator training. Request a quote for current pricing and delivery schedules for the Full Digital LED Ultrasound Scanner USS-300 (USS-300).
