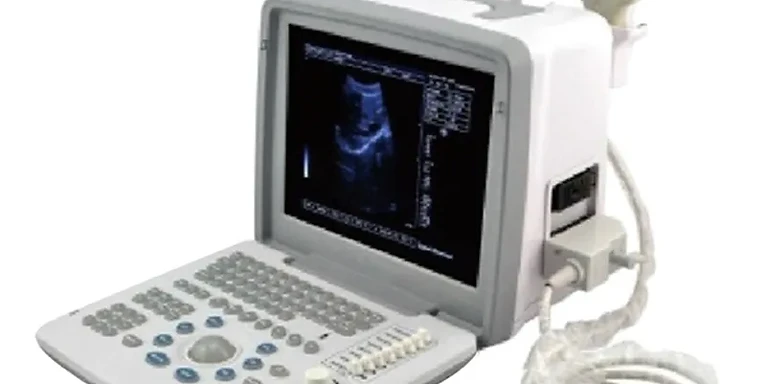

Full Digital LED Ultrasound Scanner USS-300

Product Overview

The Wincom Full Digital LED Ultrasound Scanner USS-300 is a full digital portable ultrasound for general diagnostic imaging. Display modes cover B, B/B, 4B, B+M and M on a 12.1-inch real-time display showing 256 consecutive images with 256-level gray scale and 0–120 dB adjustable dynamic range. The external LED display offers 16 kinds of pseudo color, 128 images store permanently on board, 8-segment TGC and overall gain adjust independently, and E-zoom magnifies the real-time image up to 2×. Frequency points span 2.5–7.5 MHz, with one convex probe as standard and trans-vaginal, trans-rectal, high-frequency linear and micro-convex probes optional. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.

Applications

General diagnostic ultrasound — abdominal, obstetric and basic clinical studies — in hospitals, clinics and diagnostic programmes.

Clinical Benefits

Full digital imaging with broad frequency selection and pseudo-color enhancement supports confident routine diagnostics at low cost of ownership.

Key Features

Display modes B, B/B, 4B, B+M, M; 12.1-inch real-time display, 256 consecutive images; 256-level gray scale; 0–120 dB adjustable dynamic range; external LED display with 16 pseudo colors; 128-image permanent storage; 8-segment TGC plus overall gain; 2× E-zoom; frequency points 2.5/3.0/3.5/4.0/5.0/5.5/6.0/6.5/7.0/7.5 MHz; standard 1 convex probe.

Technical Specifications

Art.No.: USS-300 | Display modes: B, B/B, 4B, B+M, M | Display: 12.1-inch real time, 256 consecutive images | Gray scale: 256 levels | Dynamic range: 0–120 dB adjustable | LED display: external, 16 kinds of pseudo color | Permanent storage: 128 images | Gain control: 8 segments TGC and overall gain adjustable respectively | E-zoom: magnify 2 times of real time image | Frequency points: 2.5/3.0/3.5/4.0/5.0/5.5/6.0/6.5/7.0/7.5 MHz | Standard probe: 1 convex probe | Probes optional: trans-vaginal, trans-rectal, high frequency linear, micro-convex — per Wincom Company Ltd. official catalogue

Accessories

Included

One convex probe, power adapter and documentation as supplied by manufacturer.

Optional

Trans-vaginal, trans-rectal, high-frequency linear and micro-convex probes.

Installation Requirements

Bench or trolley placement with mains power; probe set-up and application training on delivery.
