What is the Laptop Color Doppler Ultrasonic Diagnostic System USS-N20C?

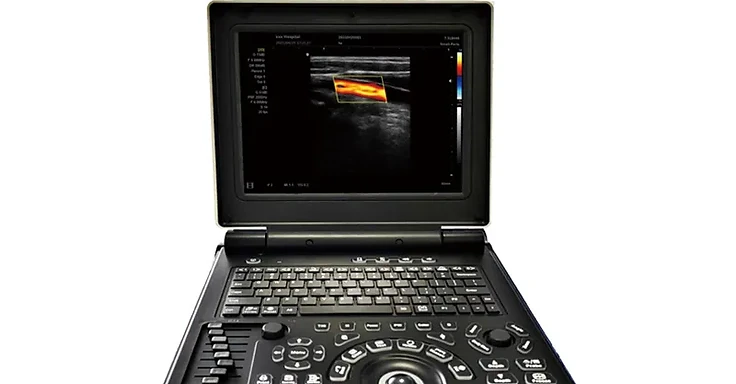

The Wincom Laptop Color Doppler Ultrasonic Diagnostic System USS-N20C is a laptop-format color Doppler ultrasound running Windows 7 on a standard backlit keyboard. Display modes include B, B/B, 4B, B+M, CFM (color flow mapping), B+CFM, PDI (power Doppler), B+PDI and PW (pulsed-wave) Doppler, presented with 256-level gray scale on a 12.1-inch LCD covering 1–400 mm penetration depth. Rich image processing technology — frame averaging, view angle and edge enhancement — supports diagnostic confidence, two activated probe connectors accept convex, trans-vaginal, high-frequency linear and micro-convex probes, optional 3D software adds 3D functionality, and a 3200 mAh rechargeable lithium battery enables portable use. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.
What is it used for?
Color Doppler and general diagnostic ultrasound — abdominal, obstetric/gynaecological, vascular and small-parts imaging — in hospitals, clinics and diagnostic centres.
Clinical and operational benefits
Full color Doppler modalities (CFM, PDI, PW) in a portable laptop chassis with battery operation extend vascular and obstetric diagnostics beyond the imaging department.
Key features
- Display modes: B, B/B, 4B, B+M, CFM, B+CFM, PDI, B+PDI, PW
- 256-level gray scale
- 12.1-inch LCD with 1–400 mm penetration depth display
- Windows 7 operation with standard backlit keyboard
- 2 activated probe connectors
- optional 3D software
- 3200 mAh rechargeable lithium battery
- rich image processing (frame average, view angle, edge).
Technical considerations
Art.No.: USS-N20C | Display modes: B, B/B, 4B, B+M, CFM, B+CFM, PDI, B+PDI, PW | Gray scale: 256 levels | Probe connectors: 2 activated | Monitor: 12.1-inch LCD, display penetration depth 1–400 mm | Operation: Windows 7, standard backlit keyboard, 3200 mAh rechargeable lithium battery | 3D function: via optional 3D software | Probes: convex, trans-vaginal, high-frequency linear, micro-convex (optional) — per Wincom Company Ltd. official product specification
Specifications should be confirmed against official Wincom documentation before purchase decisions. Where a specification is not listed here, KRIMS will confirm it with the manufacturer on request.
Who may need it?
- Clinical departments: Radiology & Nuclear Medicine, Gynaecology & Obstetrics
- Facility types: Hospitals, Clinics, Diagnostic Centres
How to evaluate this equipment
When reviewing Ultrasound Systems, healthcare facilities should assess clinical fit with existing workflows, compliance with applicable standards, integration with installed systems, serviceability, and the availability of qualified biomedical engineering support in their region.
Purchasing considerations
- Availability: On Request
KRIMS provides end-to-end support including supply, installation, commissioning, calibration, preventive maintenance and operator training. Request a quote for current pricing and delivery schedules for the Laptop Color Doppler Ultrasonic Diagnostic System USS-N20C (USS-N20C).
