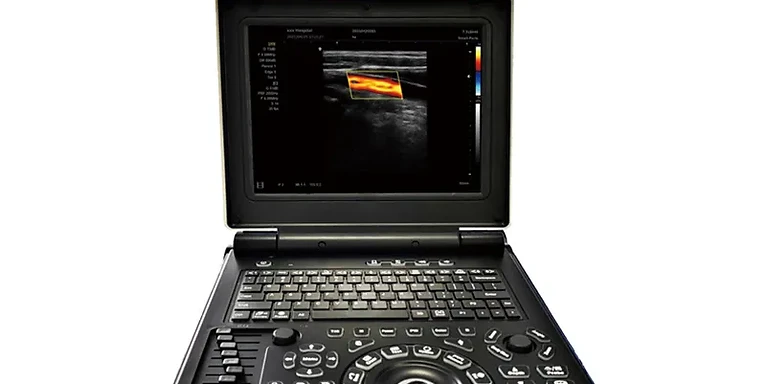

Laptop Color Doppler Ultrasonic Diagnostic System USS-N20C

Product Overview

The Wincom Laptop Color Doppler Ultrasonic Diagnostic System USS-N20C is a laptop-format color Doppler ultrasound running Windows 7 on a standard backlit keyboard. Display modes include B, B/B, 4B, B+M, CFM (color flow mapping), B+CFM, PDI (power Doppler), B+PDI and PW (pulsed-wave) Doppler, presented with 256-level gray scale on a 12.1-inch LCD covering 1–400 mm penetration depth. Rich image processing technology — frame averaging, view angle and edge enhancement — supports diagnostic confidence, two activated probe connectors accept convex, trans-vaginal, high-frequency linear and micro-convex probes, optional 3D software adds 3D functionality, and a 3200 mAh rechargeable lithium battery enables portable use. KRIMS Meditech Solutions Limited supplies this equipment with professional installation, commissioning, application training and after-sales support by factory-trained engineers.

Applications

Color Doppler and general diagnostic ultrasound — abdominal, obstetric/gynaecological, vascular and small-parts imaging — in hospitals, clinics and diagnostic centres.

Clinical Benefits

Full color Doppler modalities (CFM, PDI, PW) in a portable laptop chassis with battery operation extend vascular and obstetric diagnostics beyond the imaging department.

Key Features

Display modes: B, B/B, 4B, B+M, CFM, B+CFM, PDI, B+PDI, PW; 256-level gray scale; 12.1-inch LCD with 1–400 mm penetration depth display; Windows 7 operation with standard backlit keyboard; 2 activated probe connectors; optional 3D software; 3200 mAh rechargeable lithium battery; rich image processing (frame average, view angle, edge).

Technical Specifications

Art.No.: USS-N20C | Display modes: B, B/B, 4B, B+M, CFM, B+CFM, PDI, B+PDI, PW | Gray scale: 256 levels | Probe connectors: 2 activated | Monitor: 12.1-inch LCD, display penetration depth 1–400 mm | Operation: Windows 7, standard backlit keyboard, 3200 mAh rechargeable lithium battery | 3D function: via optional 3D software | Probes: convex, trans-vaginal, high-frequency linear, micro-convex (optional) — per Wincom Company Ltd. official product specification

Accessories

Included

Standard keyboard console, battery and power adapter; probe configuration per order.

Optional

Convex, trans-vaginal, high-frequency linear and micro-convex probes; 3D software.

Installation Requirements

Standard mains power; probe set-up and application training on delivery.
